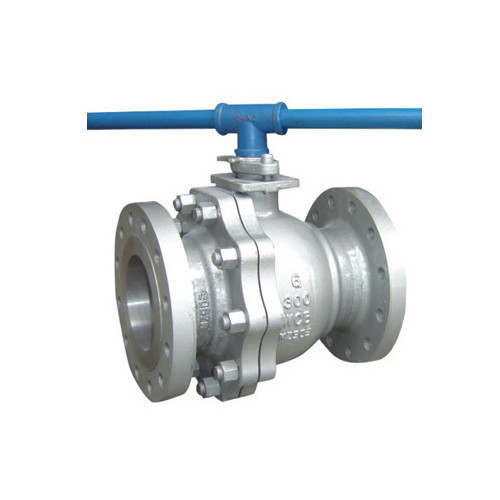

Floating Ball Valves Manufacturer, Supplier and Exporter

In order to append and respond to the diverse demands of clients, we are able to offer Floating Ball Valve. Creating a niche of BALL VALVE such as Floating Ball Valves, Trunnion Mounted Ball Valve, Steam Extension Ball Valve, Cryogenic Ball Valve, Forged Brass Ball Valve, Bronze Ball Valve and many more items at its best, with utmost quality.

Product Features:

  • Design: API 608 / BS 5351
  • Face to Face: ASME B 16.10 / API 6D
  • Flange: ASME B 16.5
  • Butt Welding: ASME B 16.25
  • Testing: API 598 / EN 12266 PART 1 & 2 / API 6D
  • Material ASTM Specifications: Carbon Steel, Alloy Steel, Low Temperature carbon Steel, Stainless Steel, Duplex Stainless Steel, Super Duplex Stainless Steel, any other special material.
  • Trims: Varieties of combinations.
  • Size: 15 to 300
  • Ends: SE, SWE, and FE
  • Seat: PTFE, CFT, GFT, RPTFE, nylon,PEEK, and metal

Optional: Single acting / Double acting air actuator, Quarter Turn motor actuator, Gear Drive, Position Indicator, Limit Switch, Extended Bonnet, Extended stem
Send Enquiry

Note:

  • Fire safe design,
  • Two piece design,
  • Full bore and Reduced bore construction,
  • Bolted / Screwed gland,
  • Actuator mounting flange - ISO 5211,
  • Antistatic,
  • Anti blow - out stem
  • Solid ball

Range Floating Ball Valves
valve rating 150 300 600 900 1500 2500
BLV 105 inches 1/2"-12" 1/2"-12" 1/2"-12" - - -
mm 15-300 15-300 15-300 - - -

The perfect combination of our in-depth industry knowledge & technology experience has allowed us to become a leader in the valve industry. The valves offered by us are available in varied material design, sizes and dimensions. While manufacturing these products, we are especially concentrating on maximizing productivity, quality standards and improving workforce to deliver a perfect range of valves to our valued customers.
